Double wire comb binding machine DCB360 (1/4 - 1 1/4 ) without mould change
제품 상세 정보:
결제 및 배송 조건:
|
상세 제품 설명
| 재료: | 철 | 애플리케이션: | 노트북 및 책상 달력 와이어 o 닫힘 |
|---|---|---|---|
| OEM: | OEM을 수락하십시오 | 터치 스크린: | 지멘스 |
| 변환기: | 컨베이어 1개 보유 | 와이어 직경: | 1/4 - 1 1/4 |
| 유형: | 이중 와이어 빗 바인딩 기계 |

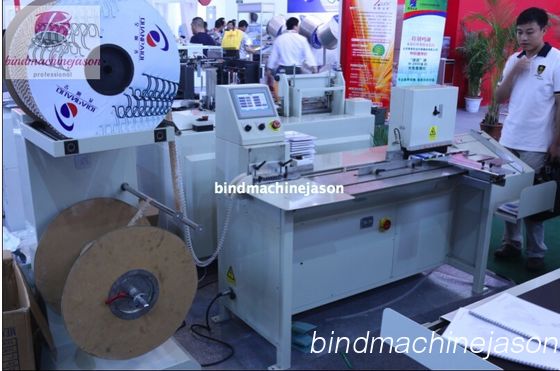

Double wire comb binding machine DCB360 (1/4 - 1 1/4 ) without mould change
Description :
DCB360 double wire comb binding machine is a machine close wire comb or double wire notebooks,easy adjust and operate.No need change mould,could close double wire size from 1/4 - 1 1/4.
Mainly used for print factory which produce notebook or desk calendar.Production bind edge size <360mm,all could be close by this machine.
Some customer want notebook with separate small loop wire close,also could be done by this machine.Touch screen there has many function,like wire separate,loops caculate,wire pitch change,and so on.
Wire comb binding DCB360 Applcation:
For wire o notebooks and desk calnedar wire o or double wire closer
Notebook wire o bind Video
https://www.youtube.com/watch?v=zzBJIpvy-Zc (in Thailand print factory)
https://www.youtube.com/watch?v=XqJXRyjbXr8&t=5s (chinese print factory)
Print facotry if mainly do notebooks wire bind,i think this wire bind machine is most sutible for you,easy adjust,stable,no mould need change mould,so it also save your cost.
Technical data:
| Wire o bind Speed | 1000 books per hour |
| Air pressure | 5 - 8 kgf |
| Wire diameter available | 1/4 - 1 1/4 |
| Max bind side length | 360mm |
| Electric power | 1ph 220v 50-60hz (other voltage on request) |
| Net weight | 450KG |
Advantages:
1.Easy adjust,control by plc.
2.Change wire size easy,no need change moulds.
3.Could close wire o notebook (first page and background page differ with inner paper)
4.Wide range use for wire o noteboks,could handle almost notebook bind edge size below 360mm

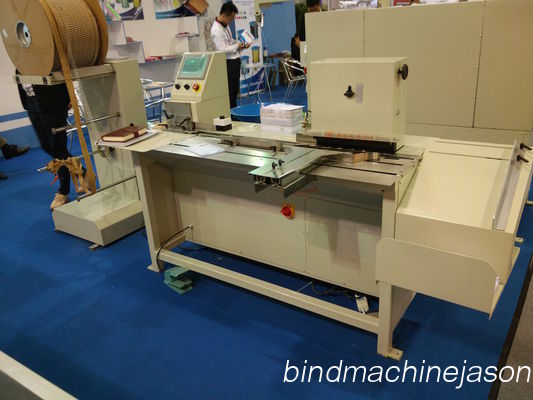

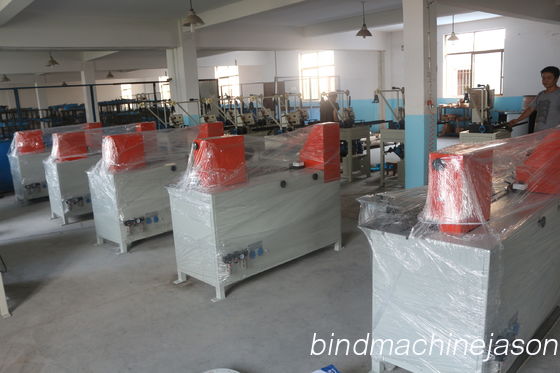

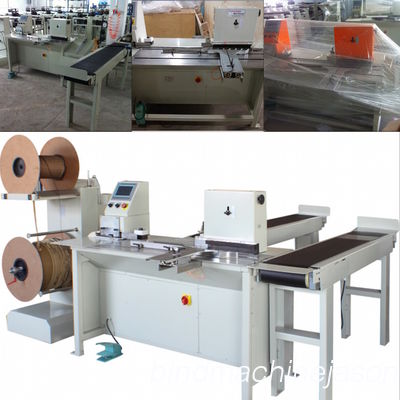

Addional pictures of machine
Tool box for adjust wire size from 1/4 - 1 1/4
-
-
Electrical picture,we use Schneider electronica,and touch screen we use Siemens.
-
One year Guarantee of this machine,if you purchased and get some part wrong,could be repalce new to you,is free,you just need pay courier fee yourself.
