Calendar and notebook double coil binding machine DCA520 with hanger part
제품 상세 정보:
결제 및 배송 조건:
|
상세 제품 설명
| 애플리케이션: | 캘린더 더블 코일 제품에 주로 사용됩니다. | 크기: | 최대 바인딩 가장자리 520mm |
|---|---|---|---|
| 행거: | 행거 장치를 선택할 수 있습니다. | 책 제본: | 표지와 내부 용지가 동일한 바인딩 가장자리가 필요합니다. |
| 속도: | 1000-1500권의 책/시간 | 세뇨르: | 제품 입력, 자동 공급 장치 및 와이어 폐쇄 |
| 재료: | 알루미늄이 아닌 철이 더 안정적입니다. | 유형: | 이중 코일 결속기 |
Calendar and notebook Double coil bind machine DCA520 with hanger part
Description:
Calendar double wire coil binding machine DCA520 maily for print factory do calendar double wire productions.With hanger part and big size bind plate,it could easy handle almost calendar.
Iron structure make it more stable than other similar machine,special push belt set middle plate could be open when you do notebook,it will deliver notebook to conveyor,also could be close if you do calendar.
This machine need change mould if you change wire size, adjustment is easy
We export many many sets to worldwide,special in Europe,there we have partner to help us sell.
Application:
To be bind or close double wire coil production like calendar,see below:
Video of double wire bind do calendar in customer factory
https://www.youtube.com/watch?v=pYxpZ8bXWOQ
https://www.youtube.com/watch?v=JzkgYGfIBzE
https://www.youtube.com/watch?v=PHSqfne8VkE
Calendar is very common production in every one life,consider it has time expire,so for print factory all over world import less from china,they will remain this produce in loca market,in order to meet their customer needs in any time.So have a stable calendar wire o bind machine is very important,this wire o bind machine could be affordable and easy adjust,it could handle small order,also could be handle big order ,let is a great flexible machine.
Do notebook wire o production
Video do double wire bind notebook in customer factory:
https://www.youtube.com/watch?v=siHA1kXERnw
https://www.youtube.com/watch?v=T3uckSHaEaA&t=6s
Through this double wire bind machine used mainly for calendar,but some time,it also couble help you finish wire o notebook job. But be noted : has limit in notebook double wire bind . Need notebook not big thickness,and cover same with inner paper bind edge size. The reason is this machine wire diameter available range is from 1/4 - 3/4,and some structure limit for paper feeder method,if cover differ inner paper bind edge size,the hold can not easy match wire o .
Technical information:
| Speed | 1000-1500 bind finish per hour |
| Air pressure | 5-8 kgf |
| Electric power | 1 ph 220v 50/60HZ (on your request) |
| Wire diameter | 1/4 - 3/4 |
| Net weight | 400 KG |
| Max bind thickness | about 15mm |

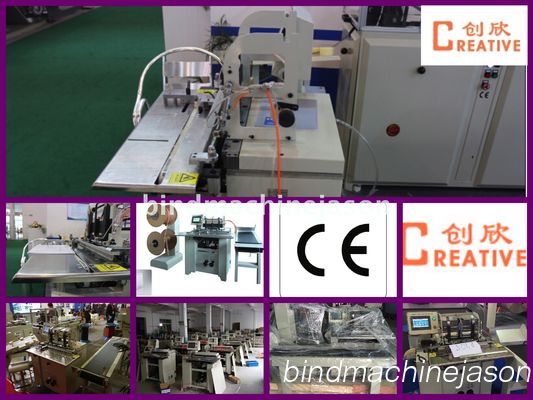

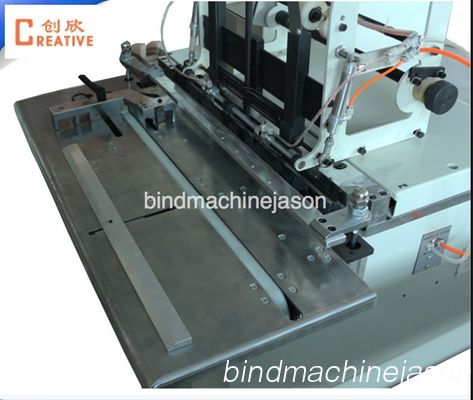

Machine picture in some angle:
Advantage :
1.Two working method,by pedal or by sensor.
2.Conveyor can be open and closed,suit for binding calendar or book.
3.Touching screen functions more rich
4.Have memory function,if you change mould ,you can set memory first,and when exchnage use previous size,save your time adjust
Additional

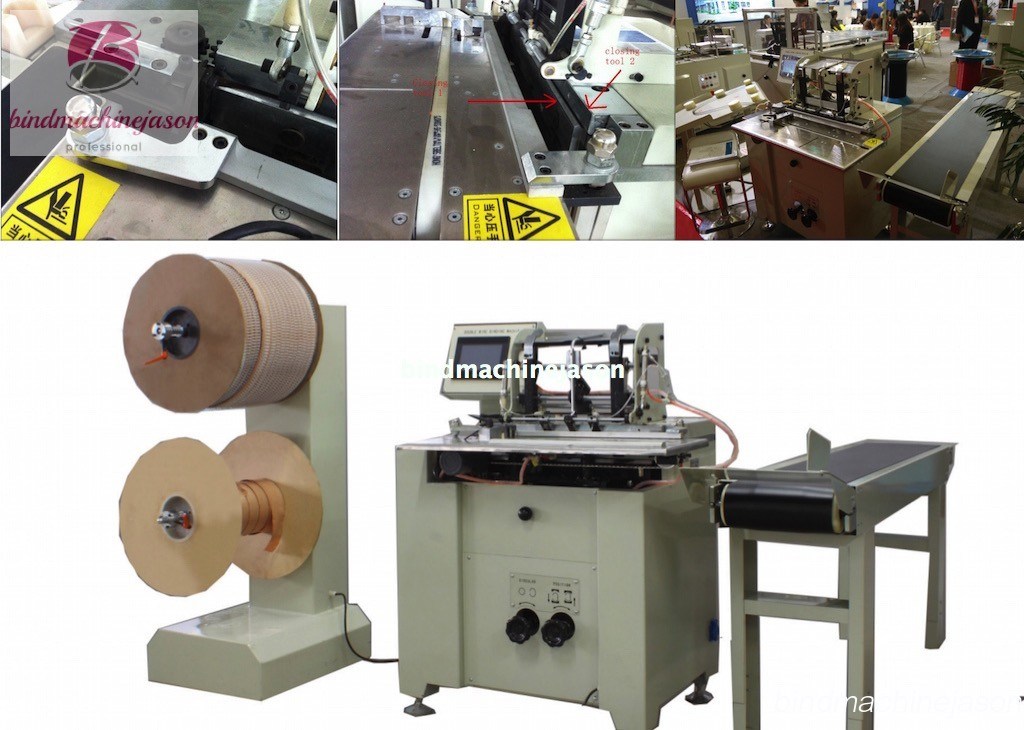

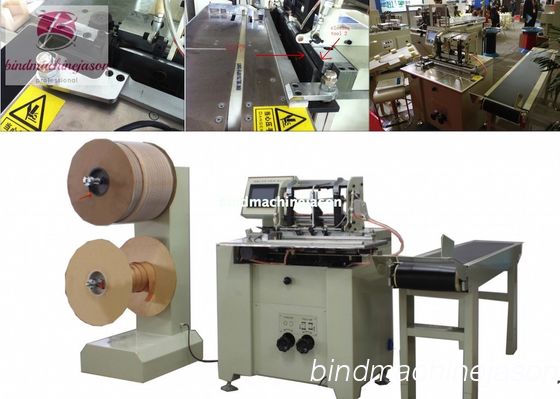

double wire coil bind machine could be inline with our forming machine,see below:
Some print factory have forming machine,if one wire size stable and large use,it could inline with wire forming machine,so do not need wire o roll feeder device.Save material cost and time.
If you take interesting or still have questions,send me email.
