Pfaeffle model Double wire forming machine DFA31/21 with good quality
제품 상세 정보:
결제 및 배송 조건:
|
상세 제품 설명
| 애플리케이션: | 이중선을 생산하다 | 유형: | 복수선 성형 기계 |
|---|---|---|---|
| 원래 모델: | 독일 Pfaeffle 모델 | 자료를 사용하십시오: | 나일론 코티드 와이어 |
| 생산: | 3:1피치 또는 2:1 피치 이중선 | 기계 곰팡이: | 하나의 금형 하나의 와이어 o 크기 |
| 힘: | 1ph 220v 50/60HZ | 보증: | 12 개월 |
Pfaeffle model Double wire forming machine DFA31/21 with good quality
Description:
Double wire forming machine DFA31/21 is a machine come from Germany pfaeffle first,is a very common and old type machine exist in the world to produce double wire ,double loop wire,twin loop wire,double-o,ring wire,wire o.
Now already have high speed wire forming machine by Kugler-womako,but Pfaeffle model DFA31/21 cheapest,affordable,also with perfect wire produce.

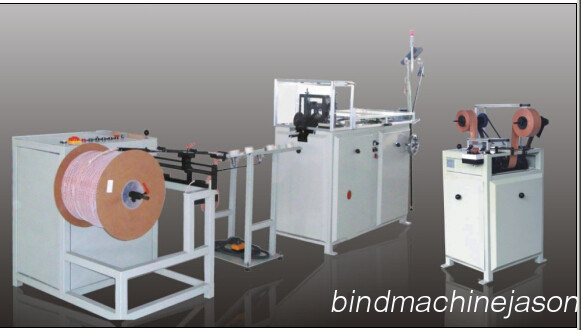

Mainly Double wire forming machine has 3 parts,wire former part + spooling roll part for collect wire o +Craft cut part for separate wire when rolled.
This machine is our manufacture first developed machine in 2003,give us good luck and profits.Now many chinese material supplier are our customers,so if you have material needs or produce wire o business project,tell me.
Production:
Below is two productions,Roll double wire used for wire bind equipment ,and Cut double loop wire.
Size
| Size | Pitch | Nylon coated wire diameter(mm) | wire o diameter(mm) |
| 1/4 | 3:1 | 0.7 | 6.4 |
| 5/16 | 3:1 | 0.8 | 7.9 |
| 3/8 | 3:1 | 0.8 | 9.5 |
| 7/16 | 3:1 | 0.9 | 11.1 |
| 1/2 | 3:1 | 0.9 | 12.7 |
| 9/16 | 3:1 | 1.0 | 14.3 |
| 5/8 | 2:1 | 1.1 | 15.9 |
| 3/4 | 2:1 | 1.2 | 19.1 |
| 7/8 | 2:1 | 1.2 | 22.2 |
| 1 | 2:1 | 1.25 | 25.4 |
| 1 1/4 | 2:1 | 1.5 | 31.8 |
To produce double wire ,twin loop wire,ring wire,wire o ,we could classify based pitch 3:1 and pitch 2:1.
3: 1pitch in common include ( 1/4, 5/16, 3/8, 7/16, 1/2, 9/16)
2: 1pitch in common include ( 5/8, 3/4, 7/8, 1, 1 1/4)
Double Wire forming machine DFA could prodcue total pitch wire o ,we have 3 type wire forming machine,Machine produce 3:1 pitch,we call DFA31.Machine produce 2:1 common pitch (5/8,3/4,7/8,1),we call DFA21.and the third machine do speical size 1 1/4
Differ sizes differ moulds and may be differ machine,you can not use DFA21 to produce 3:1 pitch wire,you only could be use DFA21 to produce 2:1 pitch range wire size.
The same to DFA31 can not produce 2:1 pitch,you can only use DFA31 to prouce 3:1 pitch range wire size.
Double Wire forming machine work video :
https://www.youtube.com/watch?v=YtnLJf8rlqk&t=5s (in customer factory do roll wire produce)

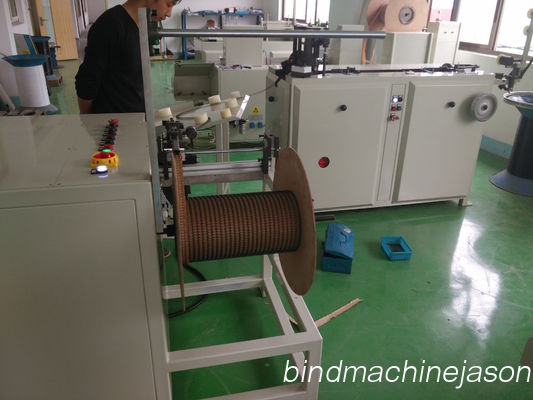

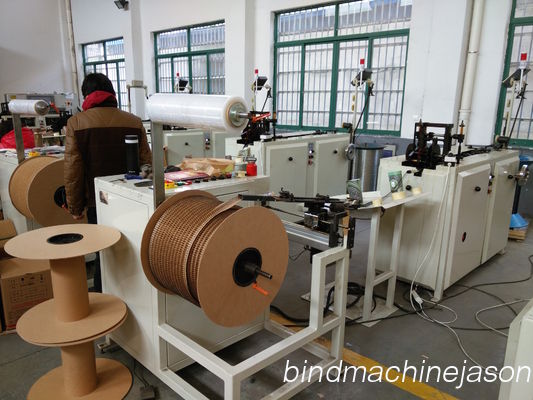

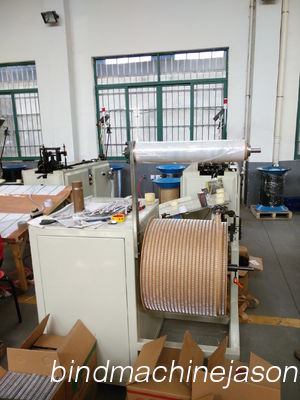

Produce roll double wire :
Produce double loop wire work video
https://www.youtube.com/watch?v=YtnLJf8rlqk&t=5s (inline with wire o cut machine produce loop wire)
Material :
Nylon coated wire is used for wire forming machine material to be produce wire .
Differ wire size commonly use differ Nylon coated wire model,diameter from (0.7 - 1.5 ),have many size,so
when you purchase machine need material wire,can contact me first.
