Automatic wire binding machine PBW580S with hole punching and auto feed conveyor
제품 상세 정보:
결제 및 배송 조건:
|
상세 제품 설명
| 애플리케이션: | 노트북, 벽 달력 및 탁상 달력 | 구멍 펀치: | 최대 펀치 너비는 580mm입니다. |
|---|---|---|---|
| 와이어 오 범위: | 1/4 - 3/4 | 속도: | 시간당 최대 1500권 |
| 재료: | 철 | 연결선: | 선재 결속기 |
| 펀치: | 홀 펀칭 | 피더 나이프: | 5 피드 나이프 |
| 피더 두께: | 최대 3mm | 펀치 시간: | 최대 5회 |
| 최대 두께: | 15mm | 맥스 시트: | 자동 피드 사용: 580x420, 자동 피드 닫기:580x800 |
| 최소 시트: | 120mm × 105mm | 서비스: | 해외 설치 및 교육 가능 |
| 보장하다: | 12 개월 | OEM: | 귀하의 로고를 추가할 수 있습니다 |

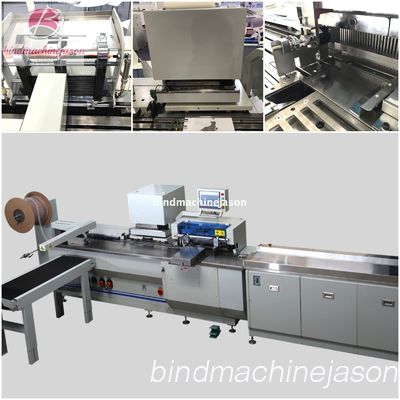

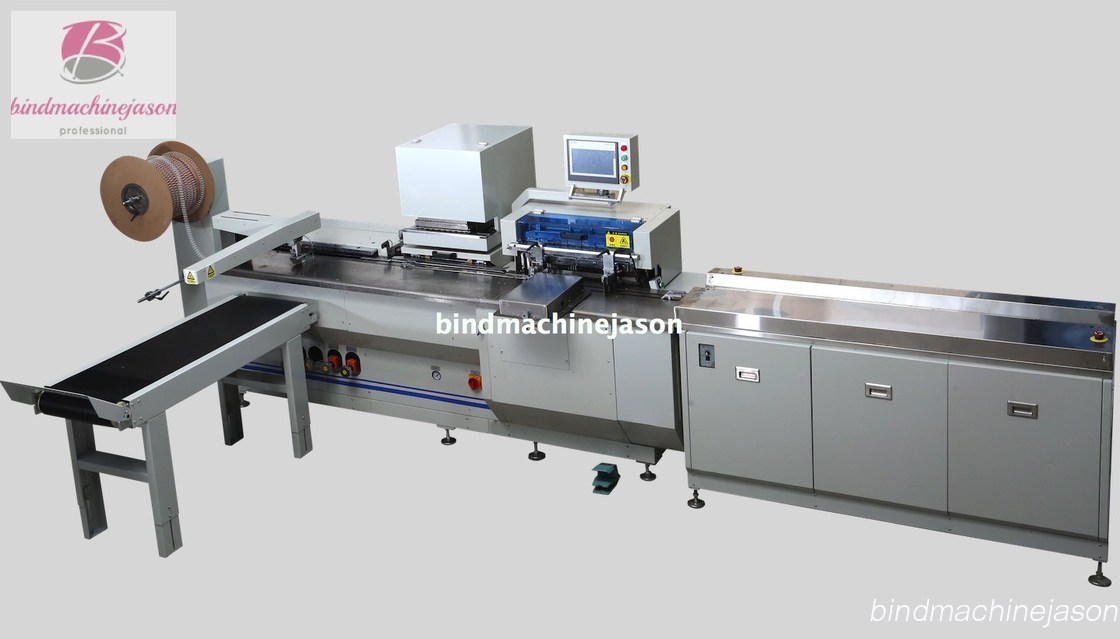

Automatic wire binding machine PBW580S with hole punching and auto feed conveyor
wire binding machine and hole punching inline PBW580S Description:
PBW580S machine include three function, wire binding function, paper hole punching function and conveyor auto feed function .Total 3 actions,notebook feeder,punch,then push finger catch punched notebook to wire binding part,then close wire o,final be deliver to conveyor. Or calendar feeder,punch,then push finger catched calendar to wire bind part,then drop hanger,final be deliver to conveyor.
Notebook :Auto feed → Punching → Hanger → Closing → Delivery Conveyor
Calendar: Auto conveyor feed or manual feed → Punching → Closing → Delivery Conveyor
Wire binding& punching inline machine Application:
PBW580S is advanced machine in wire o bind finish area,could be used in produce notebook,desk calendar and calendar wire o production.
Wire binding and hole punching in Notebook area :
Have two operate situation,notebook with same bind edge like below picture
Notebook with differ size (cover bigger than inner paper),like below picture
Wire o bind &punch in desk calendar area
Wire o bind &punch in calendar area
Machine Technical data:
| speed | Up to 1500 production/hour |
| Air pressure | 5-8 kgf |
| Wire o diameter | 1/4-3/4 |
| Max size of paper | 580mm x 800mm or 580mm x 420mm |
| Min size of paper | 120mm x 105mm |
| Max punch thickness | 5 times total 15mm |
| Electric power | 3ph 380 |
| Max punch edge size | 580mm |
| Max bind edge size | 580mm |
Machine advantage:
1.It combines auto punching and binding in one machine to save labour cost and improve production effciency
2.One machine could handle notebook,desk calendar,calendar bind and punch work
3.Not only one machine do bind and punch ,could be use seperate do bind or seperate do punch.
4.Auto collect production and could be set in touch screen for numbers books finished then move
5.If customer choose hanger device,could be do straight hanger and auto drop.
6.Complete Punch mould include two small punch moulds,and small punching moulds could change position.
If you take interesting or still have questions,send me email,so easy.
