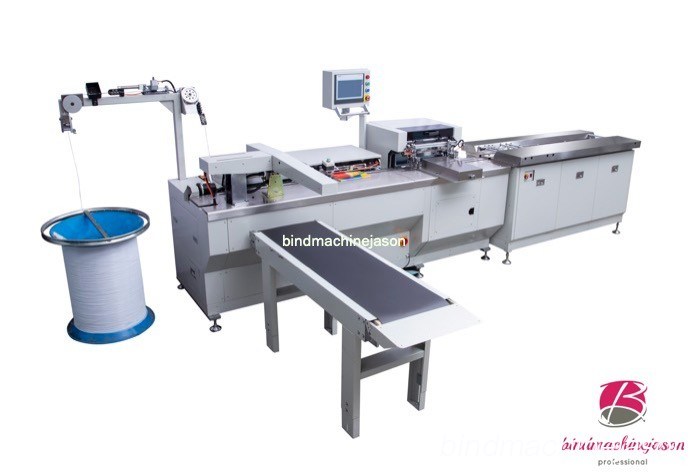

Automatic spiral binding machine PBS420 with hole punching and coil lock function
제품 상세 정보:
결제 및 배송 조건:
|
상세 제품 설명
| G 코일 잠금: | 나선형 직경 14mm - 25mm | 나선형 직경: | 8mm-25mm |
|---|---|---|---|
| L자물쇠: | 8mm-25mm | 바인딩 크기: | 최대 420mm 최소 70mm |
| 펀칭 모습: | 타원형, 둥근 구멍 | 책 두께: | 20 밀리미터를 최대한으로 쓰세요 |
| 재료: | 나일론 코팅 와이어 금속 | 속도: | 시간당 1300권 |
| 전압: | 3ph 380V | 기압: | 5-8KGF |
| 무게: | 1800kg | 홀 피치: | 5mm, 6mm, 6.35mm, 8mm, 8.47mm |
| 상태: | 새로운 | 애프터 판매 서비스 제공: | 온라인 지원, 비디오 기술 지원, 해외 기계 서비스 가능 엔지니어 |
| 보증: | 12 개월 | 자동 등급: | 오토매틱 |
| 이름: | 자동 스파이럴 묶기 기계 | 기능: | 노트북 바인딩 |

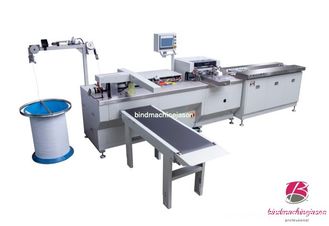

Automatic spiral binding machine PBS420 with hole punching and coil lock function
Spiral automatic binding machine PBS 420 is a perfect machine used for printing factory to produce single wire notebook job. It include paper feeding part , paper hole punching part ,spiral forming, spiral binding and scissor locking part with book collect part.
Total machines actions : Auto feeder ----- Auto punching ------Auto hole match (include cover feeder function )----auto forming and binding----coil lock cut ---collect part
Advantages:
1. For large-scale productions of spiral book
2. With G type back hook coil lock and L type common lock choice
3. Suitable some notebook (cover binding size bigger than inner paper )
4. Max could be used for 20mm thickness notebook
Technical data:
| speed | Up to1300 books per hour |
| Air pressure | 5-8 kgf |
| Spiral diameter | 8mm – 25mm |
| Max binding width | 420mm |
| Min binding width | 70mm |
| G type back hook scissors range | 14mm – 25mm |
| L type common hook scissors range | 8mm - 25mm |
| Spiral hole pitch optional range | 5,6,6.35,8,8.47 (mm) |
Binding function :
Notebook : cover binding width same with paper binding width
Special notebook : Cover binding width bigger than paper binding width
Our spiral binding machine PBS420 will be your perfect choice for single wire binding ,it save your time ,save your labor cost and help you get big orders .
Additional machines pictures :
Spiral forming and binding part
Hole match and special cover feeder part
Hole punching part
Spiral book Collect part

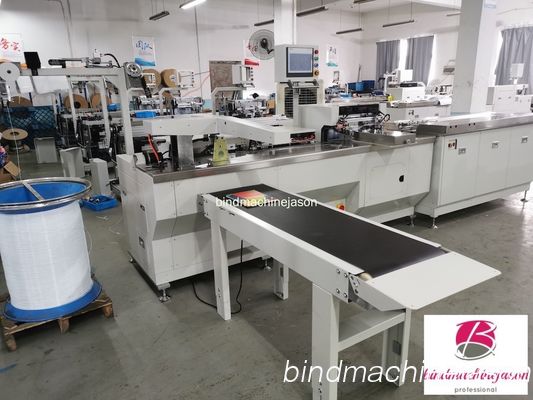

Main part in one picture
Above is our Automatic spiral binding machine PBS420 with hope punching function and coil lock function ,anything questions ,let me know .
By Creative Jason Ping .
